Mini Skid Steer Showcase: Consider These Top Units from Ditch Witch to Kubota

Kubota tool carrier
Photo provided by Kubota.

Mini skid steers have transformed small-scale earthmoving and tool carrying machinery. These units (sometimes called compact utility loaders, mini track loaders and compact tool carriers) replace manual labor with compact efficiency. Today’s machines handle everything from tight residential landscaping to busy construction sites. This showcase highlights two ends of the spectrum: giant machines and nimble 1,000-lb capacity models. Mini skid steers evolved from walk-behind pedestrian models into agile stand-on machines. They now conquer diverse tasks, including digging, backfilling, grading and loading. Compact tool carriers move materials, reduce crew size and boost productivity. They feature advanced hydraulics, versatile attachments and user-friendly controls. Whether running on tracks or tires, these machines work hard and maneuver in tight spaces. Let’s look at a few, shall we?

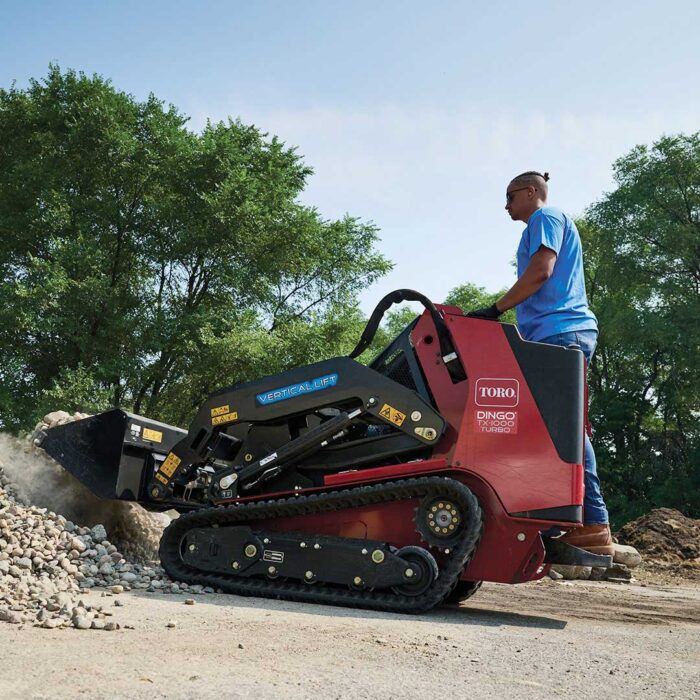

Toro Dingo TX 1000 TURBO

Photo provided by Toro.

The Toro Dingo TX 1000 Turbo sets a new standard for compact utility loader performance. Powered by a turbocharged Yanmar diesel engine and featuring the patent-pending Smart Power system, it precisely maximizes engine, auxiliary and traction torque. This advanced system significantly boosts productivity across a wide range of tasks and attachments, delivering consistent power when and where it’s needed most. The TX 1000 Turbo incorporates the proven track system from the TX 1300. Operators can choose between models optimized for their worksite: the narrow-track version weighs 2,826 lbs with a standard “B” style tread, perfect for navigating confined spaces. For superior stability and reduced ground pressure on softer surfaces, the wide-track model weighs 2,911 lbs. With its 1,000-lb rated operating capacity, the Dingo TX 1000 Turbo is engineered for heavy-duty lifting and efficient material handling.

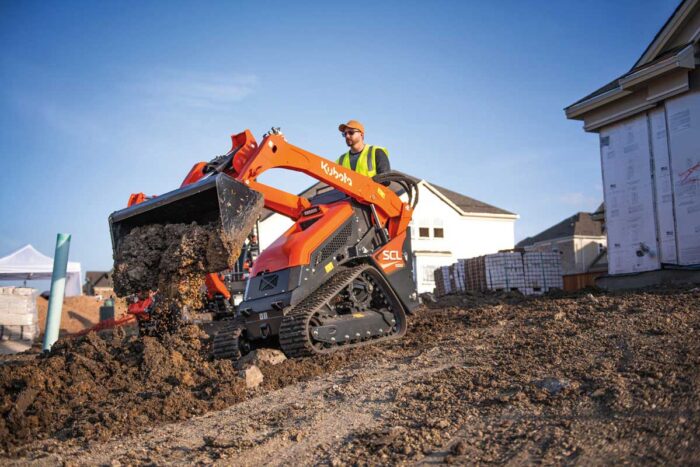

Kubota SCL1000

Photo provided by Kubota.

Kubota’s SCL1000 stand-on compact loader delivers impressive power, performance and versatility in a compact design. Featuring a reliable 23.7-hp turbocharged Kubota diesel engine, the SCL1000 offers a rated operating capacity of 1,000 lbs, making it an excellent choice for landscaping, construction and rental applications. Its 9.8-in.-wide track and narrow 36-in. overall width minimize ground disturbance and provide access to tight spaces. Operator comfort is enhanced by an adjustable platform suspension system and cushioned loader boom cylinders, ensuring maximum productivity on the job. Vertical-lift loader arms provide a hinge pin height of 84.7 in. and a reach of 26 in. at a 45-degree dump angle. Intuitive, ergonomic controls and a 4.3-in. LCD color monitor make operation simple and efficient. With a Quick-Attach mounting plate, the SCL1000 is compatible with a wide range of attachments.

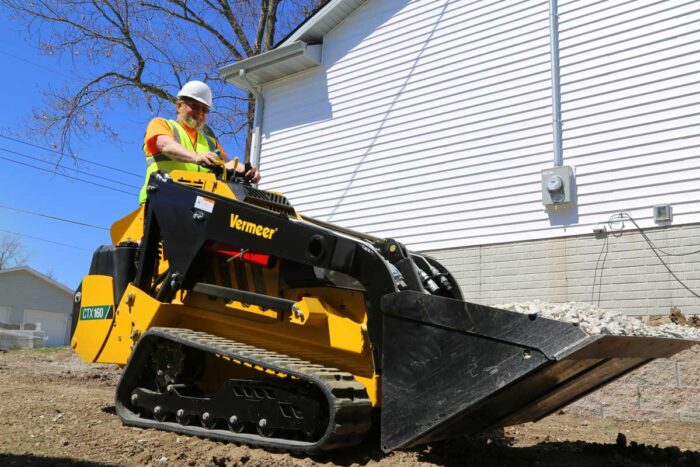

Vermeer CTX160

Photo provided by Vermeer.

The Vermeer CTX160 mini skid steer delivers strong performance in a compact size. With a rated operating capacity of 1,600 lbs and auxiliary hydraulic flow of 16.7 gpm, it’s made for tight spaces. Measuring just 42 in. wide, it features a vertical-lift path with an 88.75-in. dump height. Vermeer’s CTX160 is powered by a 40-hp turbocharged Kohler KDI diesel engine with no DPF required. The machine weighs 4,000 lbs and runs on a 9-in. rubber track undercarriage. Operator comfort comes from a chariot-style platform with pilot joystick controls, dual auxiliary hydraulics and a universal mounting plate for diverse attachments. The CTX’s loader arms have a three-year/3,000-hour warranty.

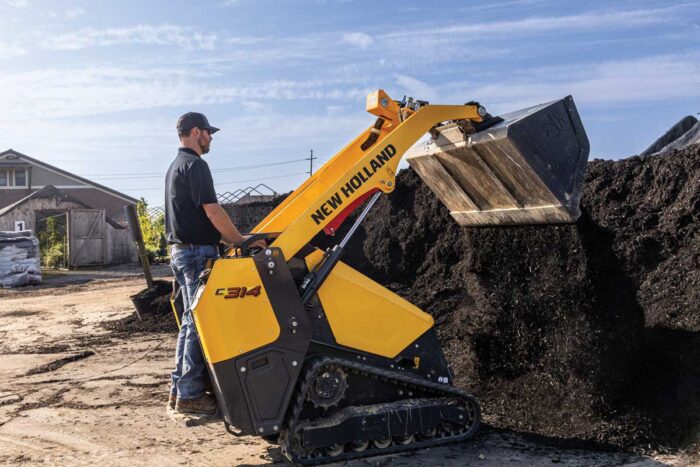

New Holland Construction’s C314

Photo provided by New Holland Construction.

New Holland Construction’s C314 offers reliable performance with an operating weight of 3,536 lbs on narrow tracks and 3,783 lbs on wide tracks, ensuring stability on the jobsite. Its radial-lift geometry features a straightforward linkage system with a single pivot point, delivering enhanced forward reach at mid-range heights. Despite its compact dimensions, 56.5 in. in height and 85.6 in. in length, the C314 provides a rated operating capacity of 2,833 lbs on the narrow track. A direct drive hydraulic motor enhances maneuverability and control for precise work in confined spaces. The C314 is equipped with Common Industry Interface (CII) coupler and 14-pin electric multifunction control, supporting a broad range of attachments. Driven by a 24.8-hp engine, the machine operates smoothly and quietly, while its Tier 4 Final solution eliminates the need for DEF or a DPF.

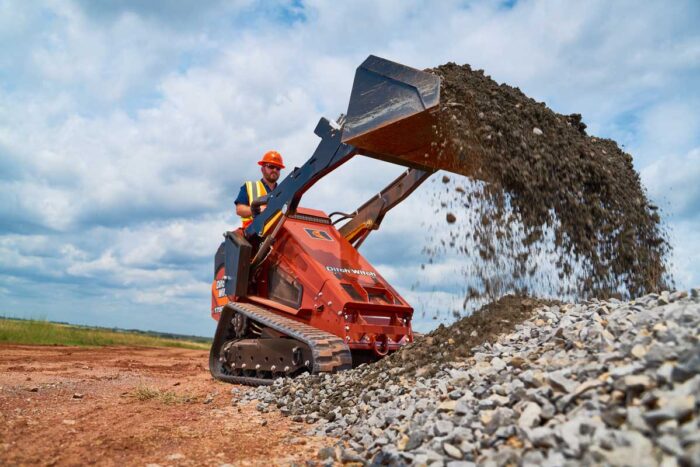

Ditch Witch SK1750

The Ditch Witch SK1750 — equipped with the TriTrax system — is built with the power and reliability to complete any task. The new track system features a patent-pending track tension check window, which allows operators to visually check track tension without threading a separate gauge tool, which saves time and helps operators feel confident in their routine maintenance checks. The improved track design provides a smooth, comfortable ride with outstanding maneuverability and stability — even when transporting heavy loads across rough terrain. The track design causes less disturbance to the ground, meaning operators can work more efficiently and spend less time repairing damaged turf on the jobsite. Improved roller design means rollers last significantly longer, only further increasing machine reliability and jobsite productivity.

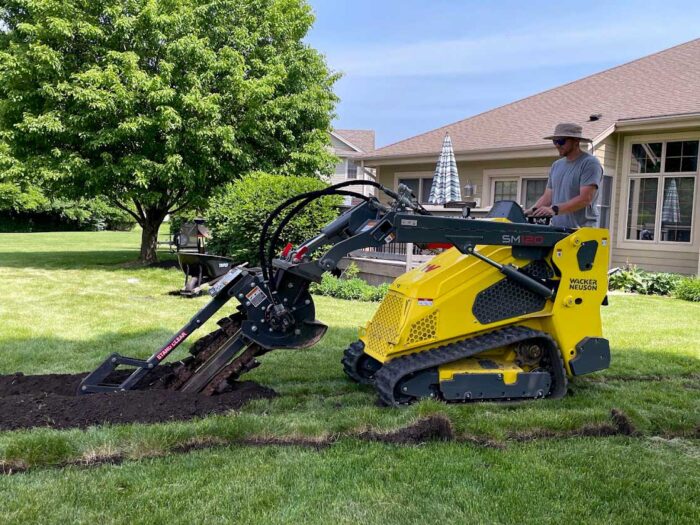

Wacker Neuson SM120

Photo provided by Wacker Neuson.

The Wacker Neuson SM120 is designed for the professional who needs to lift, move and place more during their landscape, tree service and site work. Powered by a 24.7-hp Yanmar diesel engine, the SM120 has a rated operating capacity of 1,226 lbs, as well as a travel speed of 5.2 mph, providing fast cycle times. The 41-in. wide machine is equipped with class-leading 11-in. wide tracks, providing ultra-low ground pressure for less turf disturbance. It also features a best-in-class hinge pin height of 85.7 in. The SM120 is available with a productivity package that includes QuickGrip proportional auxiliary hydraulic controls and ride control. The latter delivers a smoother ride and provides hydraulic cushioning to the lift arms to reduce material spillage.

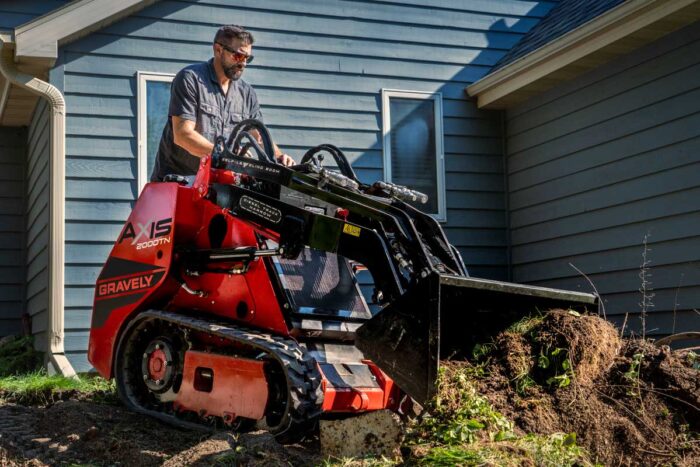

Gravely AXIS

Photo provided by Gravely.

Whether reshaping landscapes or tackling tough terrain, the Gravely Axis delivers unmatched versatility in a compact, powerful package for landscape professionals and DIYers. Its compact size and lighter weight makes it easy to trailer, brings power to tight spaces and minimizes soil compaction with optional tracks that are more gentle on manicured turf. Available with wheels or tracks, all Axis models feature dual auxiliary hydraulic ports — unique to Gravely — for powering both motor- and cylinder-driven attachments. The 25-hp diesel Axis 200 also allows operators to direct 100 percent of hydraulic flow to attachments like augers and trenchers for maximum efficiency and performance in high-load applications. A universal mounting plate accepts a wide range of OEM and approved third-party attachments, while intuitive controls make operation easy for users of all experience levels.

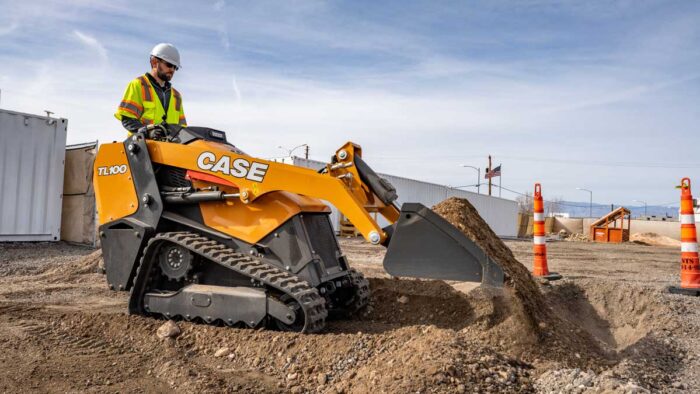

Case TL100

Photo provided by Case CE.

Case Construction Equipment’s TL100 mini track loader gives small contractors construction-grade strength to tackle more tasks efficiently and profitably. With a 1,000-lb operating capacity and compact design, the TL100 easily navigates tight spaces like yard gates and tree clusters, making it a cost-effective solution to boost productivity on smaller projects. Its compact size also makes it easy to transport between sites, simple to operate and less likely to disturb terrain. The TL100 delivers enhanced operating performance with a radial linkage loader arm for improved digging and reduced maintenance, plus a 7-ft, 2-in. hinge pin height for easy clearance over most dumpsters and trailers. Equipped with a 24-hp engine, standard auxiliary hydraulics, Common Industry Interface coupler and an optional 14-pin electrical connector with case drain, the TL100 offers endless versatility.
