Hyundai Excavators — 2015 Spec Guide
Seven Compact and Mid-Sized Crawlers Combining Power and Comfort
Since 1981, Hyundai Construction Equipment Americas has been an integral part of the global construction equipment business of Hyundai Heavy Industry. Hyundai introduced its first compact excavator — the R15-7 — in 2005, consistent with its strategy of providing a full spectrum of excavators to meet the needs of a broad range of customers and applications. The current 9A Series is Hyundai’s fourth generation of compact excavators.
The Hyundai 9A Series compact excavators comply with Tier 4 Final emissions regulations. A key differentiation for Hyundai is that all excavator models are sold “fully loaded” with auxiliary hydraulics, pattern changers and other features that typically are available as added-cost options on competitive models.

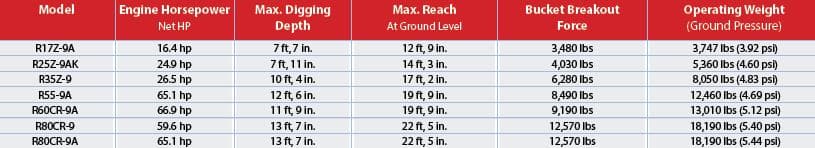

Hyundai currently offers seven models of compact- and mid-sized excavators, ranging from the R17Z-9A, with an operating weight of 3,747 lbs and a Tier 4 Final 16.4-hp engine, to the R80CR-9A, with an operating weight of 18,190 lbs and a Tier 4 Final 65-hp engine. Hyundai excavators are compatible with a full spectrum of third-party attachments, as well as five models of Hyundai brand hydraulic breakers.
Among the more popular compact models is the Hyundai R25Z-9AK, which features a heavy-duty upper frame that absorbs high stress loads on the job. Its X-leg center frame and reinforced box section track frame provide strength and longer service life to withstand tough working conditions. The R25Z-9AK excavator is powered by a Tier 4 Final-certified Kubota engine.
Control devices are all located for improved operator comfort and productivity, says Hyundai. The R25Z-9AK hydraulic system provides fast operation with fine control capabilities. The canopy-style frame ensures operator safety and complies with international standards for TOPS, ROPS and FOPS. The R25Z-9AK features a suspension seat and foldable pedals for added space, with multiple storage compartments. The monitoring system includes seven warning indicators, water temperature gauge, fuel gauge and hour meter for productive, convenient operating. The operator experience is enhanced with a fully adjustable suspension seat, wrist rests, ergonomically designed joysticks and plenty of legroom.
Advice to Buyers
“First and foremost, work with your equipment dealer to specify the right machine for your job, in terms of size, power and required attachments,” says Corey Rogers, marketing manager with Hyundai. “Also, be aware of how you will be moving the machine between jobs. A very small model excavator may fit in the back of a pickup truck. Most compact models may be trailered along with a second machine such as a skid steer or another compact excavator, but some mid-sized excavators may need a separate trailer.”
