Case Adds Four New Mini Excavators to Its D Series, Including the Electric CX25EV
Compact Options Grow with Diesel- and Battery-Powered Models, Offering More Choices for Confined Jobsites
Case Construction Equipment has expanded its mini excavator lineup with four new models — three diesel-powered units and one electric. These additions to the D Series lineup continue the company’s push to deliver right-sized machines for compact and urban jobsites, while expanding its electric equipment offerings. Let’s break down what’s new, but first a quote from the press release:
“Labor shortages, close-quarter environments, more stringent jobsite requirements — the challenges crews are up against today are more varied than ever,” said Terry Dolan, head of CNH Construction Brands, North America. “Helping crews meet the demands of the modern worksite is what drives our practical approach to innovation, and it’s why we’ve focused heavily on enhancing our robust lineup of mini excavators to offer the most efficient solutions. These new models deliver big on power, but they’re also easier to transport, move around the jobsite, operate, maintain and own, compared to larger machines.”
The Four New D Series Minis
The four new models now joining the D Series are:
- CX12D — Ultra-compact diesel mini excavator
- CX19D — Mid-range diesel mini excavator with cab/canopy options
- CX25EV — Battery-electric mini excavator
- CX60D — 6-ton diesel mini with long arm and premium cab
Each model is compact enough for urban environments, yet delivers solid performance for jobs like trenching, grading, truck loading and site prep.

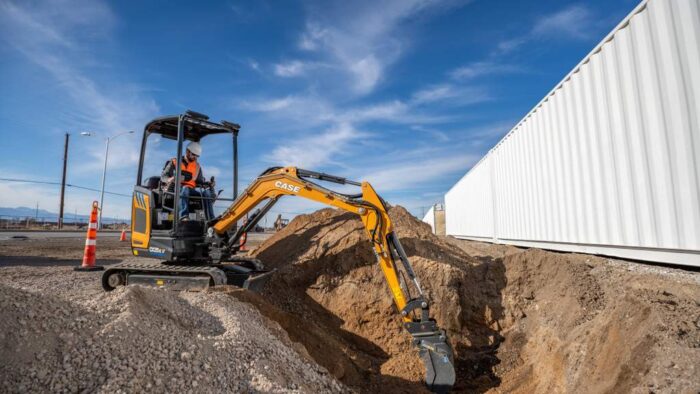

Case CX25EV: Electric Power for Tight Quarters
The headliner is the CX25EV, Case’s newest battery-powered mini excavator. With a 32.3-kWh lithium-ion battery, this electric model delivers runtime and performance comparable to diesel alternatives — without emissions or much engine noise.
- Operating Weight: 5,159 lbs
- Power System: 32.3-kWh lithium-ion battery
- Tail Swing: Short-radius design
- Features: Customizable electrohydraulic controls, 3 auxiliary circuits, low-noise operation
The CX25EV is part of Case’s broader electric push, which already includes the 580 EV backhoe and electric compact wheel loaders. Like those machines, the CX25EV is aimed at contractors working in cities, residential areas or environmentally sensitive jobsites where noise and emissions are restricted. This unit was originally announced in late 2024 as part of a broader Case EV launch, but now the CX25EV is finally available to American contractors.
New Diesel Models for Diverse Crews

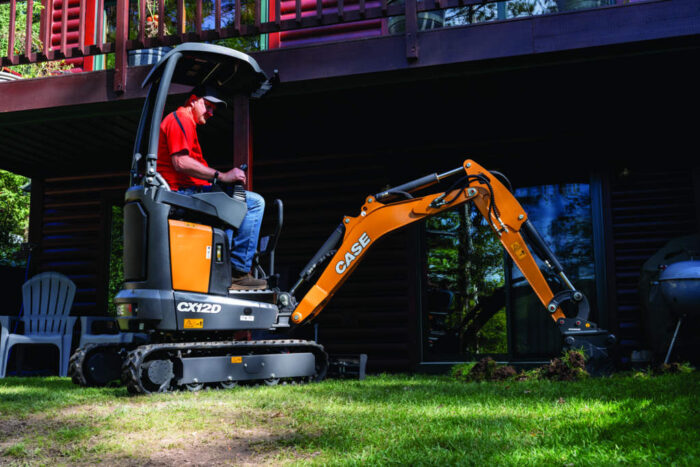

CX12D: Entry-Level Simplicity
- Operating Weight: 2,932 lbs
- Engine Power: 11.8 hp
- Design: Compact and easy to transport
- Use Case: Landscaping, utility work in confined areas
The CX12D is one of Case’s most compact D Series excavator to date. Its small footprint, simple controls and service-friendly layout make it an appealing option for entry-level users and small contractors.

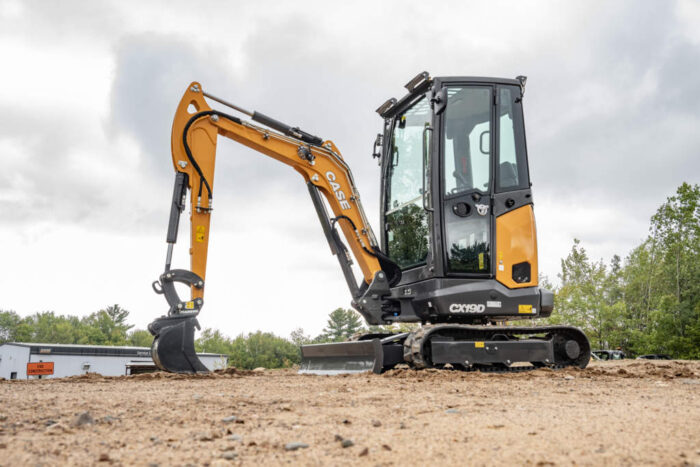

CX19D: Performance in a Compact Footprint
- Operating Weight: 4,145 lbs
- Engine Power: 18.4 hp
- Cab Options: Open canopy or heated cab
- Attachments: Compatible with tiltrotators, hammers, augers and more
The CX19D steps up in size and capability, offering a more comfortable operator environment and compatibility with a broader range of hydraulic tools.

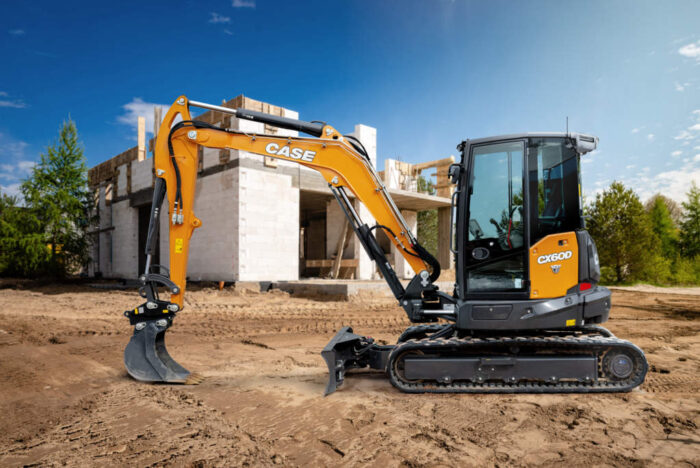

CX60D: The Workhorse of the Group
- Operating Weight: 13,162 lbs
- Engine Power: 59.4 hp
- Blade: Optional six-way blade
- Cab: Enclosed, with HVAC, air-suspension seat and LCD display
The CX60D brings full-day comfort and more digging muscle. Its thumb-ready design and electrohydraulic features make it suitable for grading and foundation work on bigger residential or commercial jobs. This machine also features a long arm.
Spec Comparison Table
| Model | Operating Weight | Power Source | Horsepower / Battery Size | Tail Swing | Key Features |
|---|---|---|---|---|---|
| CX12D | 2,932 lb | Diesel | 11.8 hp | Minimal swing | Lightweight, simple transport |
| CX19D | 4,145 lb | Diesel | 18.4 hp | Zero tail swing | Cab or canopy, tilt-rotator ready |
| CX25EV | 5,159 lb | Battery Electric | 32.3 kWh battery | Short-radius | 3 aux circuits, low noise, customizable controls |
| CX60D | 13,162 lb | Diesel | 59.4 hp | Short-radius | Premium cab, long arm, LED lighting |
Part of a Bigger Excavator Expansion
These four new minis follow recent additions to Case’s midi excavator range, including the CX85E and CX90E. Those 8- to 9-ton machines offer 72 hp engines and advanced hydraulics for high-performance attachment use in confined work zones. With the D Series and midi range fleshed out, Case now offers one of the most complete compact excavator lineups on the market.
Final Thoughts
With these new releases, Case shows a clear focus on providing scalable, flexible options for modern contractors. Whether diesel or electric, the D Series minis bring practical features, jobsite versatility and transportability to a wide range of applications. For contractors and rental houses looking to grow their compact equipment fleet, Case now offers more choices than ever. From the press release:
“Helping crews get more done on the job, and helping contractors and rental houses grow their business is what drives our relentless focus on continuous improvement,” said Dolan. “With our expanded mini excavator lineup, we’re equipping teams with the most advanced technology, powerful performance and intuitive design so they can work more efficiently than ever before.”
Keith Gribbins is publisher of Compact Equipment.
